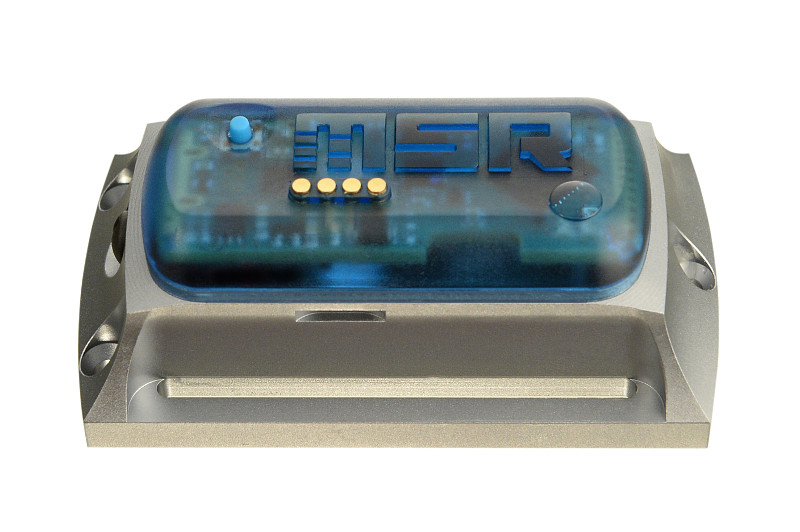

MSR160: High Speed Data Logger with 4 Analogue Inputs and Gigantic Memory Capacity

measurement rate up to 1000/s per channel · optionally temperature, humidity, air pressure, position and light sensors

Four integrated analogue inputs, a high measurement rate of 1000/s per channel and its gigantic memory capacity, all packed into a small format are the key characteristics of the swiss made MSR160 data logger.

4 analogue inputs for conventional sensors

The analogue inputs of the logger can be used for conventional sensors with analogue outputs (e.g. voltage, current, CO2 etc). The analogue inputs allow voltage and milliamp current to be measured at high data rates up to 1,000 readings per second. A multiple output switching power supply is also provided. Optionally, the MSR160 can be fitted with additional temperature, humidity, pressure, acceleration or light sensors.

Memory capacity for over 1 billon measurements

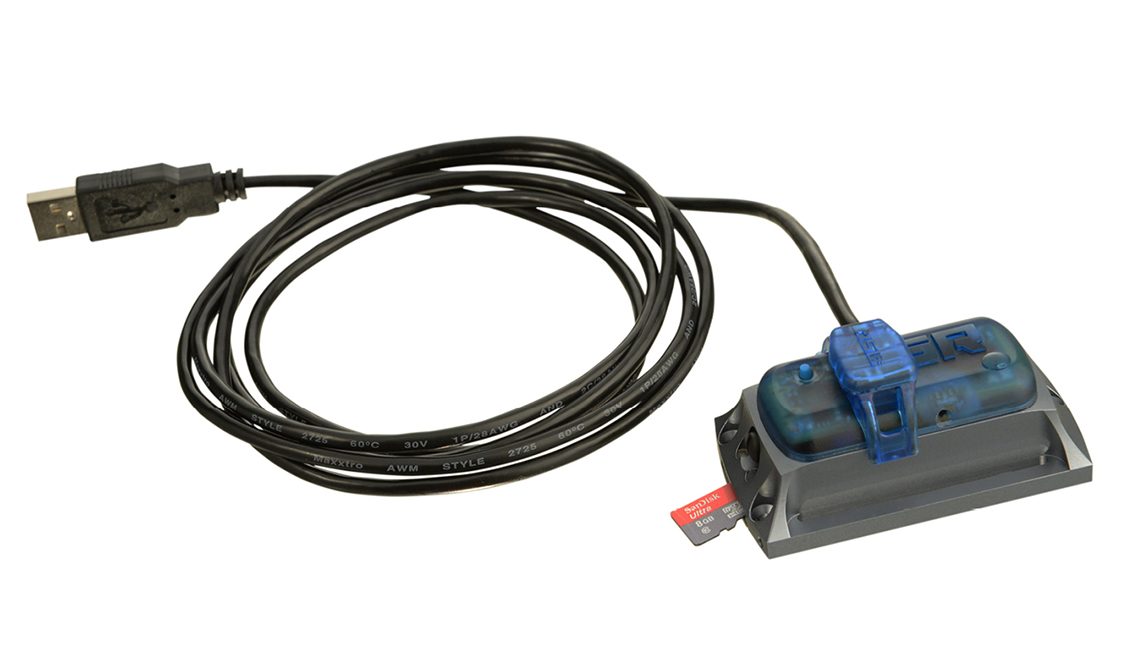

The rugged but leightweight data logger records over 2,000 000 measurement parameters. With the optional microSD card you can expand the memory capacity to over one billion measurement parameters. All saved data can be rapidly transferred to a PC or laptop via the USB interface. The user-friendly data acquisition and analysis software is supplied free along with the data logger.

Configure your MSR160 here
...or buy it in the webshop

1. Basic specification and technical data for the MSR160

Housing
Technical data Item no.
Data Logger MSR160: anodised aluminium case, PC
Standard IP 60
PC, not encapsulated
Analogue inputs: 4 analogue inputs with freely selectable input configuration: 0...20 mA; 4...20 mA; 0...3.0 V; 0.5...4.5 V; 0...5.0 V; 1.0...6.0 V; 0...10.0 V; 0...12.0 V; 0...24.0 V; 0...36.0 V; 0...48.0 V; Resolution: 12 bit
Measurement/storage rate: 1000/s per channel to every 12h

Housing: Anodised aluminium case, PC
Size & weight: 39 x 23 x 72 mm, approx. 80 g
Colour: Blue, anthracite

Medium: Air, various liquids
Key: Configurable pushbutton functions
Memory capacity: Over 2 Mio. measurement parameters, expandable to over 1 bn with optional microSD card.

Power supply: Rechargeable lithium polymer battery 900 mAh
Interface: USB
PC software: Setup, Reader, Viewer and Online software (Windows 7/8/10)

160B7

Data Logger MSR160: anodised aluminium case, PC
Waterproof IP 67
PC, encapsulated

160B8

2. Select the input configuration.

Analogue inputs Inputs Input configuration Item no.
Screw terminal for 4 analogue inputs.

Including alarm output and input
for starting and stopping data recording.
4 analogue inputs
(resolution: 12 bit)
Select the number of inputs for the
respective input configuration:

(1)   0...20 mA
(2)   4...20 mA
(3)   0...3.0 V
(4)   0.5...4.5 V / 0...5.0 V
(5)   0...10.0 V / 1.0...6.0 V
(6)   0...12.0 V
(7)   0...24.0 V
(8)   0...36.0 V
(9)   0...48.0 V

Exxxx

3. Select the sensors.

You can select various internal as well external sensors.

Measured parameter /
Measuring/storage rate
Working range /
Accuracy
Internal
sensor
External sensor (according to cable length)
0.20 m 1.00 m 1.60 m
Temperature

1/s to every 12 h
external: -40...+125 °C
intern: -20...+65 °C

±0.1 °C (-25...+55 °C)
±0,3 °C (-40...+125 °C)
Item no. T9
Item no. FT9/020
Item no. FT9/100
Item no. FT9/160
-55...+125 °C
±0.5 °C (-10...+70 °C)
±2 °C (-55...+125 °C)
only available
externally
Item no. FT2/020
Item no. FT2/100
Item no. FT2/160
Relative humidity
with integrated temperature

1/s to every 12 h
0...100 % rel. humidity
extern: -40...+125 °C
intern: -20...+65 °C

±2 % rel. humidity
(10...80 %, +25 °C)
±3 % rel. Feuchte
(80...100 %, +25 °C)
Item no. H3
Item no. FH3/020
Item no. FH3/100
Item no. FH3/160
Air pressure absolute,
with integrated temperature

1/s to every 12 h
10...2000 mbar absolute
extern: -40...+85 °C
intern: -20...+65 °C

±2 mbar
(750...1100 mbar absolute,
+25 °C)
Item no. P5
Item no. FP10/020
Item no. FP10/100
Item no. FP10/160
0...14 bar absolute
-20...+65 °C

±50 mbar
(1...10 bar abs., +25 °C)
Item no. P7
Item no. FP7/020
Item no. FP7/100
Item no. FP7/160
Attitude

1/s to every 12 h
±15 g
-20...+65 °C

±0.15 g (0...5 g, +25 °C)
±0.25 g (5...10 g, +25 °C)
±0.45 g (10...15 g, +25 °C)
Item no. A
Item no. FA/020
Item no. FA/100
Item no. FA/160
Light

1/s to every 12 h
0...83 000 lx
max. sensitivity
at 550 nm
Item no. L3
Item no. FL3/020
Item no. FL3/100
Item no. FL3/160

4. Would you like to expand the memory capacity of your MSR160 to over 1 billion measurement parameters?

Please enquiry the expansion slot for plugging-in a standard microSD card here. Item no.
Expansion slot for microSD card (includes one formatted and ready for use ≥4GB microSD card). Please note that this expansion slot with plugged-in microSD-card only meets the protection category IP60. N10006

5. Contact us for prices and delivery terms!

Make a price enquiry by telephone, fax or email

The following codes denote the type of datalogger and sensors you have selected. When making price enquiries by telephone, fax or Email, please contact the dealership in your country and have the codes ready.

List of the international dealerships

Product codes:

Making price enquiries using the contact form

Please provide us with your contact details on the following online form and send your enquiry with a click of your mouse – we will be pleased to send you a no-obligation quotation!

Title*
First name
Surname*
Company
Industry
Number, street
Zip code/postcode
City
Country*
Phone
Fax
Email*

Notes (please enter the number of units you require here):

I agree to the use of my personal data pursuant to the Privacy Policy of MSR Electronics GmbH.*
I would like to subscribe to the free MSR newsletter.I can revoke my consent to this at any time in the unsubscribe link of the newsletter. I can find further information in the Privacy Policy of MSR Electronics GmbH.


*Mandatory fields

Product features data logger MSR160

  • Multi-purpose mini data logger with 4 analogue inputs with freely selectable input configuration (see Configurator) for connecting conventional sensors with analogue output
  • Measuring/storage up to 1000/s per channel
  • Up to 5 additional internal sensors available for temperature, humidity, air pressure and attitude (see Configurator)
  • Up to 2 internal sensors can be replaced with external ones (see Configurator)
  • Stores up to 2 m or 1 bn (SDcard) total readings
  • Lithium-polymer battery (1000 mAh), rechargeable via USB port
  • Small in size, rugged anodised aluminium case, PC
  • Free MSR PC software: MSR Setup, Reader, Viewer and Online software



Technical data of the sensors, housings and batteries

Technical details can be found on the Configurator tab.



General technical data of the MSR160 data logger

Memory capacity: Over 2 million measurement values, with microSD card over 1 billion.
Push-button:
Set bookmark or start and stop recording.
LED:
Blue: Record indicator
Red: Alarm indicator
Yellow: Battery charge indicator
Power supply:
Lithium-polymer battery (1000 mAh), rechargeable via USB port
Interface:
USB
Operation conditions:
Temperature: -20…+65 °C
Storage conditions:
Temperature: +5…+45 °C (ideal storage conditions for the battery)

Humidity: 10…95 % relative humidity, non-condensing

Standards:
The MSR160 complies with EU-Directives RoHS/WEEE.

Software

Our software is scanned for viruses with Microsoft Defender.



Instruction manuals

Datasheets

Certificate



FAQ – frequently asked questions about MSR data loggers

MSR160: mini data logger with analogue inputs for a maximum of flexibility

With the MSR160 data logger, sensors can be connected to the integrated analogue inputs, ensuring maximum flexibility for a multitude of measurement tasks (e.g. CO2, conductivity, pH etc). The analogue inputs of this multi-purpose quality logger can be used to connect conventional sensors with analogue outputs. In addition, a multiple output switching power supply is also provided. The MSR160 is used for example, in the automotive industry (vehicle manufacture and development), in measurement and testing applications for railways and trains and also in the environmental technology sector. Its robust small format is ideally suited to outdoor applications in particular – for example measurements at wind power and other energy installations. With the corresponding sensors connected, the MSR160 is equally suited for applications in the food processing industry, laboratory technology or in patient monitoring.
