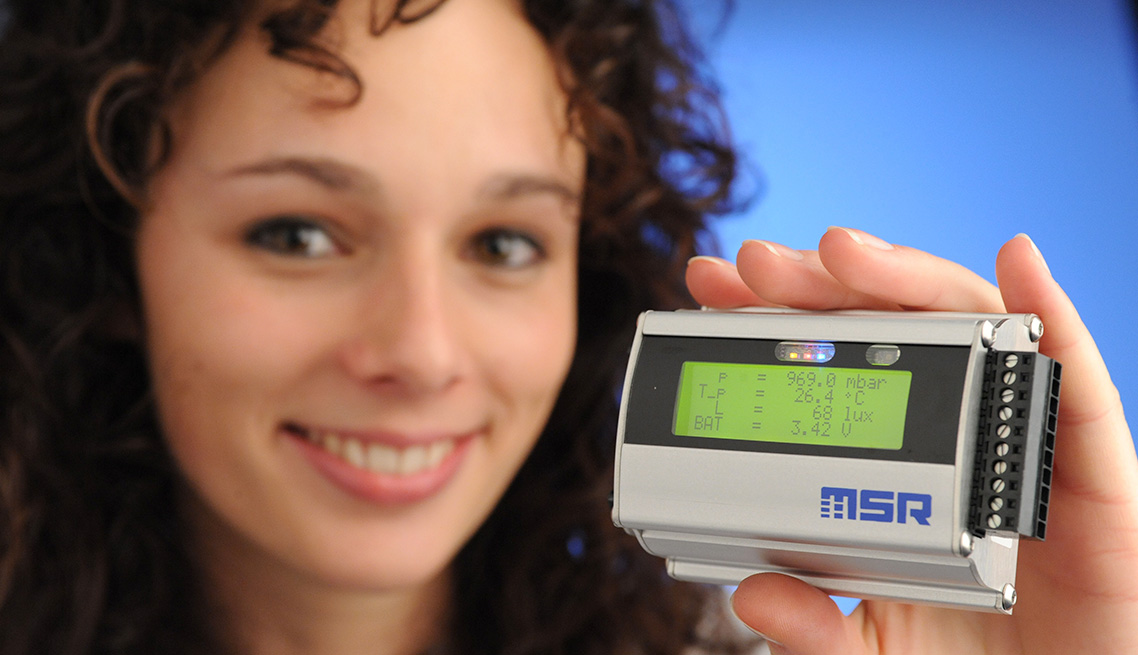

MSR255: Multifunction Data Logger with LCD Display

handy data logger for monitoring temperature, humidity, pressure, acceleration or light · 2 m measured values · optional 4 analogue inputs · LCD display

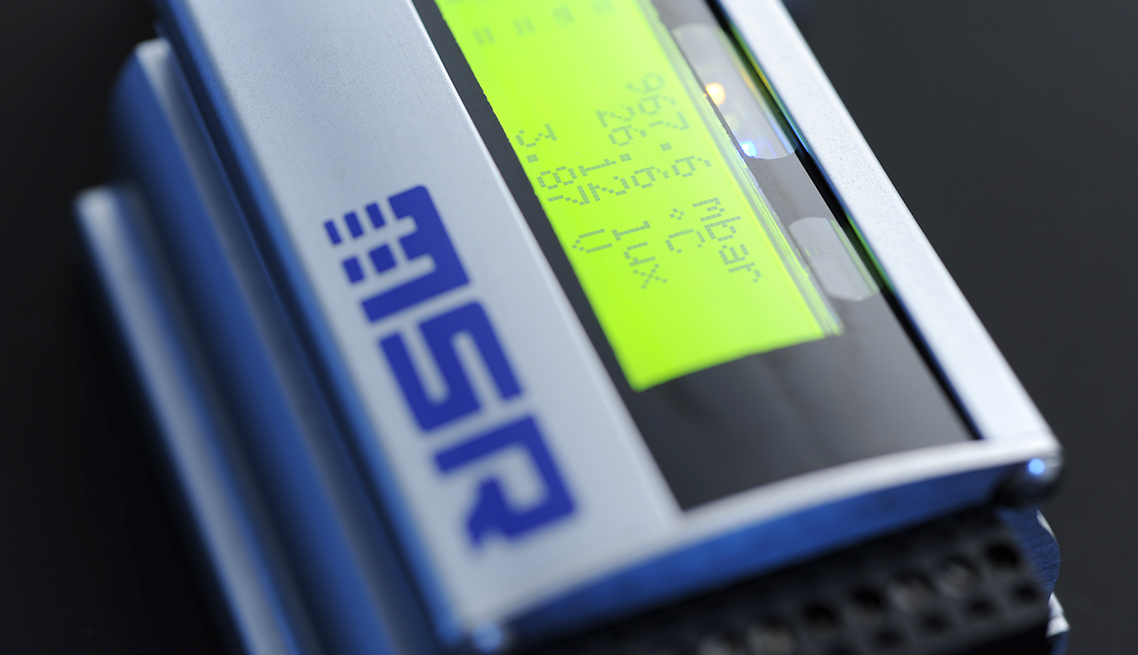

The robust data logger MSR255 has an individually configurable, 4-line LCD display that shows the current values of all measurement channels as well as the battery status and other device information. Thanks to its high-capacity lithium polymer battery the data logger is ideal for long-term data acquisition applications.

Simultaneous recording of up to five different measured variables

The MSR255 has a large memory of over 2 million measurement values and is capable of simultaneously recording and storing up to five different measured variables: temperature, humidity, air pressure, acceleration and light. Acceleration values can be measured at 3200 Hz and saved at a frequency of approx. 50 Hz following digital filtration. In addition, the voltage of four further external analogue channels or sensors can also be recorded. The analogue inputs feature an alarm output, multiple output switching power supply and an input for starting and stopping data recording.

All measured values can be rapidly transferred to a PC or laptop via the USB interface for data analysis purposes.The user-friendly MSR PC software for data acquisition and analysis comes free of charge.

Configure your MSR255 here
...or buy it in the webshop

Configure your own custom MSR255 variant here!

With a few clicks you are able to select and send us your enquiry of your requested MSR255.

  1. Select the housing and the corresponding battery.
  2. Select the sensors.
  3. Do you require an additional 4 analogue inputs for connecting third-party sensors?
  4. Place your enquiry.

1. Basic specification and technical data for the MSR255

Housing
Technical data Item no.
Autonomous LCD datalogger with up to 5 sensors and 4 analogue inputs

Standard IP 60
not encapsulated
Housing: Anodised aluminium industrial case with top-hat rail snapper (TS35)
Size & weight: 78 x 62 x 38 mm, approx. 222 g

Memory capacity: Over 2 000 000 measurement parameters

Operation: Two keys for selecting functions and controlling data recording
Display: Four row LCD matrix display
LED: 3 colour LED to indicate data recording, alarm and charge condition

Integrated sensors: Selection of different sensors for temperature, relative humidity,
pressure, light and 3-axis acceleration/position
Measurement rate (MR): 1 /s to every 12 h (acceleration up to 3200 /s)
Storage rate (SR): 1 /s to every 12 h (acceleration up to 50 /s)

Power supply: Rechargeable lithium polymer battery 2300 mAh, external power supply unit
Interface: USB (Mini-B)
PC software: Free Setup, Reader, Viewer- & Online software
(Windows 7/8/10)

Operating conditions:   Temperature -20...+65 °C
Storage conditions:
  • Temperature +5...+45 °C (ideal storage condition for the battery)
  • 10...95 % relative humidity, non-condensing

Standards: The MSR255 complies with EU-Directives RoHS / WEEE.

255B10

Autonomous LCD datalogger with up to 5 sensors and 4 analogue inputs

Waterproof IP 67
encapsulated

255B11

2. Select the sensors.

You can specify your MSR255 with up to five different sensors.

Measured parameter /
Measuring/storage rate
Working range /
Accuracy
Internal
sensor
External sensor (according to cable length)
0.20 m 1.00 m 1.60 m
Temperature

1/s to every 12 h
external: -55...+125 °C
internal: -20...+65 °C

±0.5 °C (-10...+65 °C)
±2 °C (-55...+125 °C)
Item no. T2
Item no. FT2/020
Item no. FT2/100
Item no. FT2/160
Relative humidity
with integrated
temperature

1/s to every 12 h
0...100 % rel. humidity
external: -20...+85 °C
internal: -20...+65 °C

±2 % rel. humidity
(10...85 %, 0...+40 °C)
±4 % rel. humidity
(85...95 %, 0...+40 °C)
Item no. H
Item no. FH/020
Item no. FH/100
Item no. FH/160
Air pressure absolute,
with integrated
temperature

1/s to every 12 h
0...2000 mbar absolute
external: -20...+85 °C
internal: -20...+65 °C

±2.5 mbar
(750...1100 mbar absolute,
+25 °C)
Item no. P
Item no. FP/020
Item no. FP/100
Item no. FP/160
0...14 bar absolute
-20...+65 °C

±50 mbar
(1...10 bar abs., +25 °C)
Item no. P2
Item no. FP2/020
Item no. FP2/100
Item no. FP2/160
3-axis-acceleration

Acceleration: 50/s (3200/s)
Attitude:
1/s to every 12 h
±15 g
-20...+65 °C

±0.15 g (0...5 g, +25 °C)
±0.25 g (5...10 g, +25 °C)
±0.45 g (10...15 g, +25 °C)
Item no. A
Item no. FA/020
Item no. FA/100
Item no. FA/160
Light

1/s to every 12 h
0...65 000 lx
max. sensitivity
at 500 nm
Item no. L
Item no. FL/020
Item no. FL/100
Item no. FL/160

3. Do you require an additional 4 analogue inputs for connecting third-party sensors?

It is possible to expand the range of possible applications for which your MSR255 can be used by specifying four analogue inputs. These additional inputs allow external sensors for a wide range of measuring tasks to be connected. If required, these third-party sensors can be powered by the logger's internal battery. The power can be automatically turned on before measurements take place with a pre-settable lead time. This allows any necessary warm-up periods for the sensors to be taken into consideration.

Analogue inputs Inputs Input configuration Item no.
Screw terminal for 4 analogue inputs.

Including an alarm output, multiple output
switching power supply and an input for
starting and stopping data recording.

Measurement/storage rate:
1/s to every 12 h
4 analogue inputs
(resolution: 12 bit)
0...3.0 V - Standard E3333
4 analogue inputs
(resolution: 12 bit)
Select the number of inputs for the
respective input configuration:

(1)   0...20 mA
(2)   4...20 mA
(3)   0...3.0 V
(4)   0.5...4.5 V / 0...5.0 V
(5)   0...10.0 V / 1.0...6.0 V
(6)   0...12.0 V
(7)   0...24.0 V
(8)   0...36.0 V
(9)   0...48.0 V
Exxxx

4. Contact us for prices and delivery terms!

Make a price enquiry by telephone, fax or Email

The following codes denote the type of datalogger and sensors you have selected. When making price enquiries by telephone, fax or Email, please contact the dealership in your country and have the codes ready.

List of the international dealerships

Product codes:

Making price enquiries using the contact form

Please provide us with your contact details on the following online form and send your enquiry with a click of your mouse – we will be pleased to send you a no-obligation quotation!

Title*
First name
Surname*
Company
Industry
Number, street
Zip code/postcode
City
Country*
Phone
Fax
Email*

Notes (please enter the number of units you require here):

I agree to the use of my personal data pursuant to the Privacy Policy of MSR Electronics GmbH.*
I would like to subscribe to the free MSR newsletter.I can revoke my consent to this at any time in the unsubscribe link of the newsletter. I can find further information in the Privacy Policy of MSR Electronics GmbH.


*Mandatory fields

Product features data logger MSR255

  • Multifunctional data logger with 4-row backlit LCD display, 4 individually configurable views
  • Choice of 5 internal or up to 4 external sensors available for temperature, humidity, air pressure, light and acceleration/attitude (see Configurator)
  • Acceleration values can be measured at 3200 Hz and stored at a frequency of approx. 50 Hz following digital filtration
  • Optional 4 analogue inputs with freely selectable input configuration (see Configurator) for connecting conventional sensors with analogue output
  • Stores over 2 m total readings
  • Lithium-polymer battery (2300 mAh), rechargeable via USB port
  • Robust anodised aluminium industrial case with top-hat rail snapper (TS35)
  • Free MSR PC softwareMSR Setup, Reader, Viewer and Online software



Technical data of the sensors, housings and batteries

Technical details can be found on the Configurator tab.

General technical data of the data logger MSR255

Memory capacity: Over 2 million measurement values.
Push-button:
Set bookmark or start and stop recording.
LED:
Blue: Record indicator
Red: Alarm indicator
Yellow: Battery charge indicator
Power supply:
Lithium-polymer battery (2300 mAh), rechargeable via USB port
Interface:
USB
Operation conditions:
Temperature: -20…+65 °C
Storage conditions:
Temperature: +5…+45 °C (ideal storage conditions for the battery)

Humidity: 10…95 % relative humidity, non-condensing

Standards:
The MSR255 complies with EU-Directives RoHS/WEEE.

Software

Our software is scanned for viruses with Microsoft Defender.





Instruction manuals



Datasheets



Certificates





FAQ – frequently asked questions about MSR data loggers

MSR255: multifunctional data logger with LCD display

The measuring tasks undertaken by the user define the way in which the MSR255 is configured: There is a choice of temperature, humidity, air pressure and light sensors (which can be fitted as required either internally within the case or externally on a cable) together with a sensor for monitoring acceleration in all three co-ordinate axes.

The handy MSR255 simultaneously measures and saves up to five different measurement parameters. The voltage signals from four additional analogue channels can also be recorded. The internal memory capacity of the MSR255 is over 2 million measurement parameters. Thanks to its higher capacity lithium polymer battery (2300 mAh) the unit is ideal for making long-term measurements. A permanent power supply can also be connected via a 6V socket.

The MSR255 has two operating keys. The easy-to-read 4-row backlit LCD display has four individually configurable views. Up to four display values can be defined for each of the views and users may select from all of the measurement channels, battery status, configurable limits and alarm values. The display also has an energy-saving mode.Data can be transferred to any PC or laptop using the software and USB cable supplied.
