MSR BudgetLine: Reusable PDF Data Loggers for Temperature and Humidity
MSR63, MSR64, MSR83, MSR84, MSR86: Cost-effective climate data loggers for transport and warehouse monitoring
When transporting and storing goods such as pharmaceuticals or foodstuffs, it is imperative to maintain a specified, constant temperature. The data loggers of the MSR BudgetLine help here: they measure and document climate values seamlessly and in compliance with standards.
6-point-calibration certificate and software included
Recorded measured data of the MSR BudgetLine loggers can easily be transferred to a PC using the USB interface. When the data logger is stopped, a PDF report is automatically generated, which can be saved or printed for documentation purposes.The report includes a graphical view, a table of readings and a statistical view showing minimum, maximum, average values etc.
For temperature ranges from -100 °C up to +150 °C
The MSR BudgetLine data loggers are available in different versions – with or without display and with internal (MSR63, MSR83) or external temperature sensor (MSR86) or with an additional internal humidity sensor (MSR64, MSR84). MSR BudgetLine data loggers are DIN12830 and 21 CFR Part 11 compliant. They comply with EU regulations for the storage and transport of refrigerated and frozen foods as well as those of the US Food and Drug Administration (FDA).
| Item no. | Sensors | Housing & battery | CHF (net) |
|---|---|---|---|

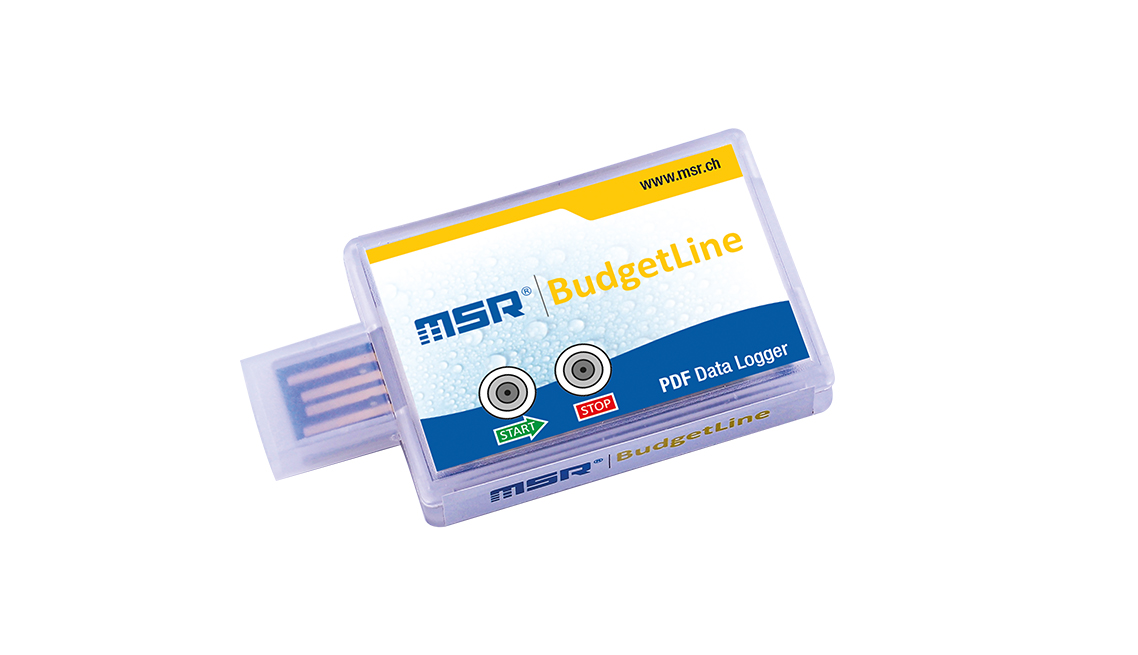

MSR63
|
|
PC, ABS Food Grade, IP54, not encapsulated Size & Weight: 36 x 12 x 71 mm (W x H X L), approx. 17 g |
CHF 43.00 buy online contact a reseller |

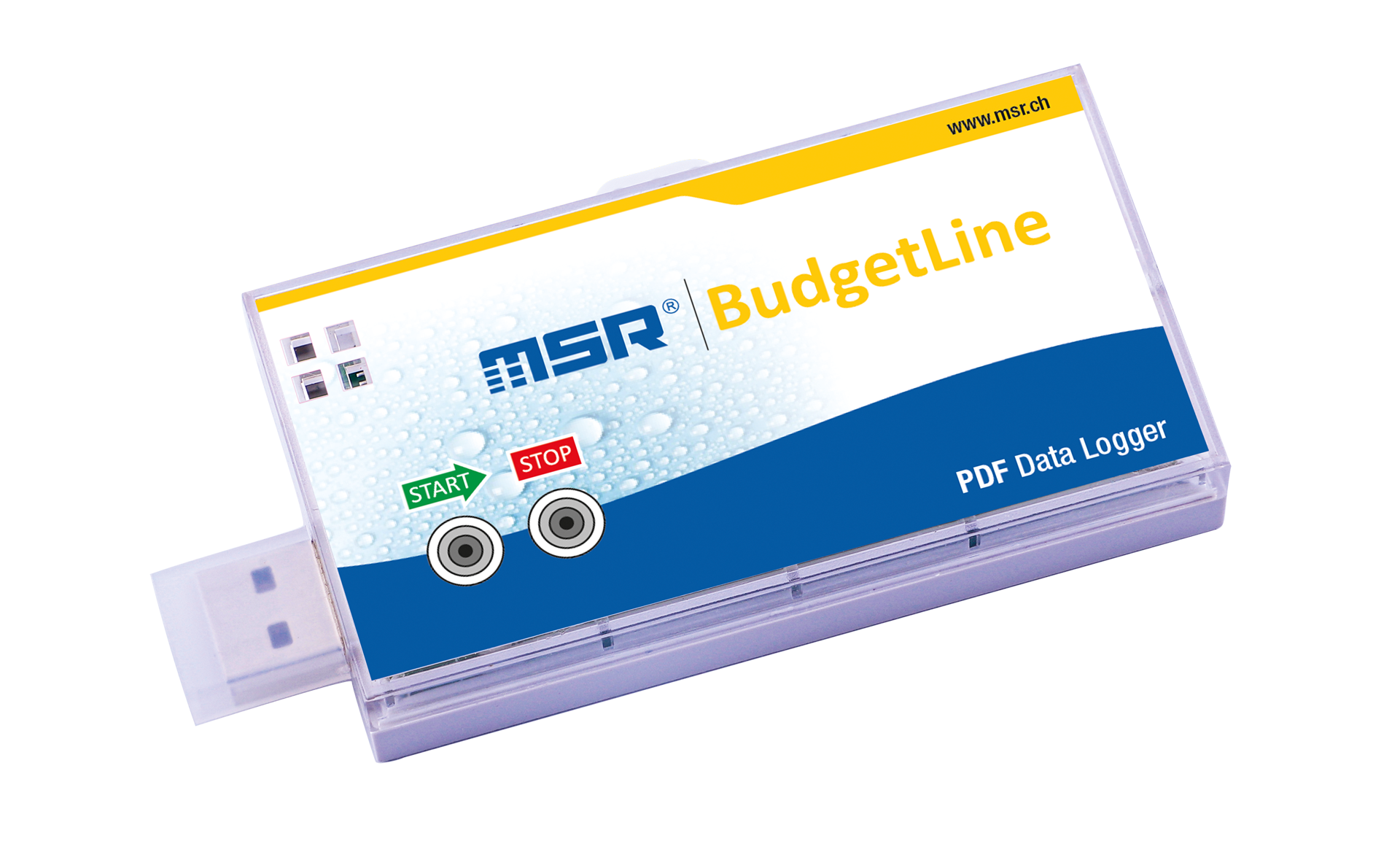

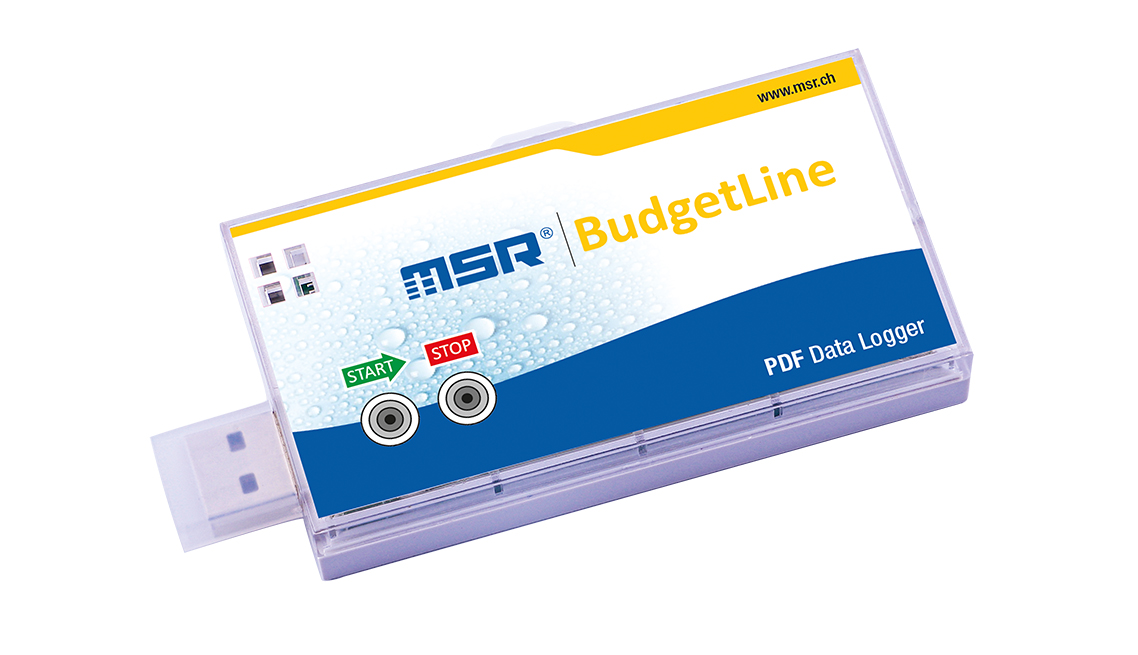

MSR64
|
|
PC, ABS Food Grade, IP54, not encapsulated Size & Weight: 51 x 15 x 101 mm (W x H X L), approx. 52 g |
CHF 97.00 buy online contact a reseller |

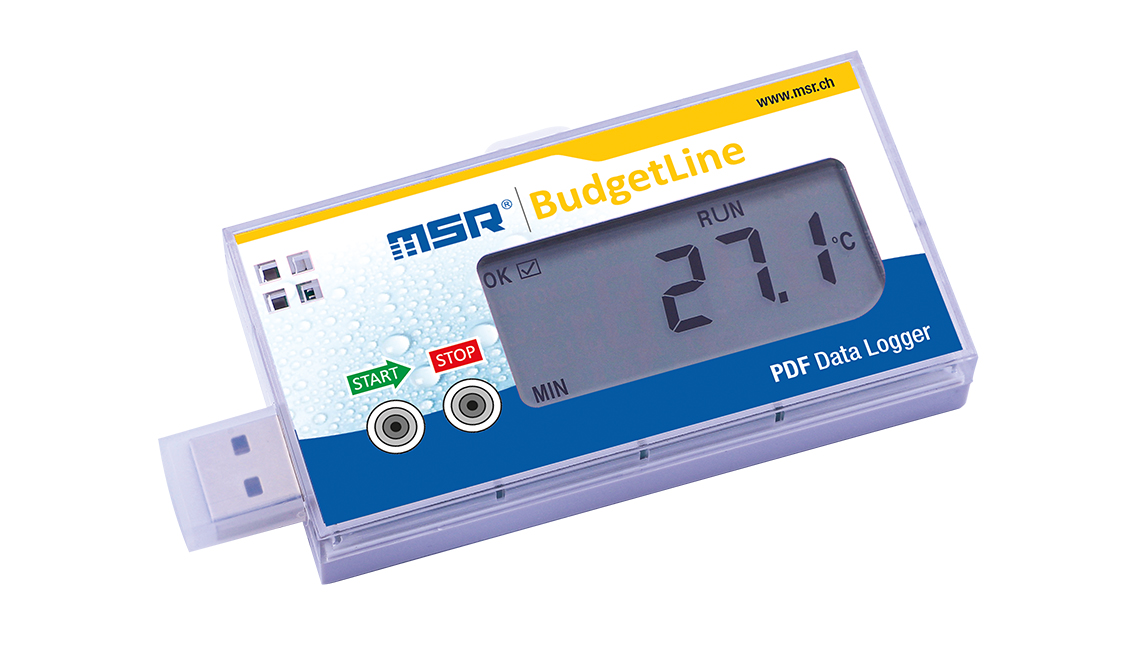

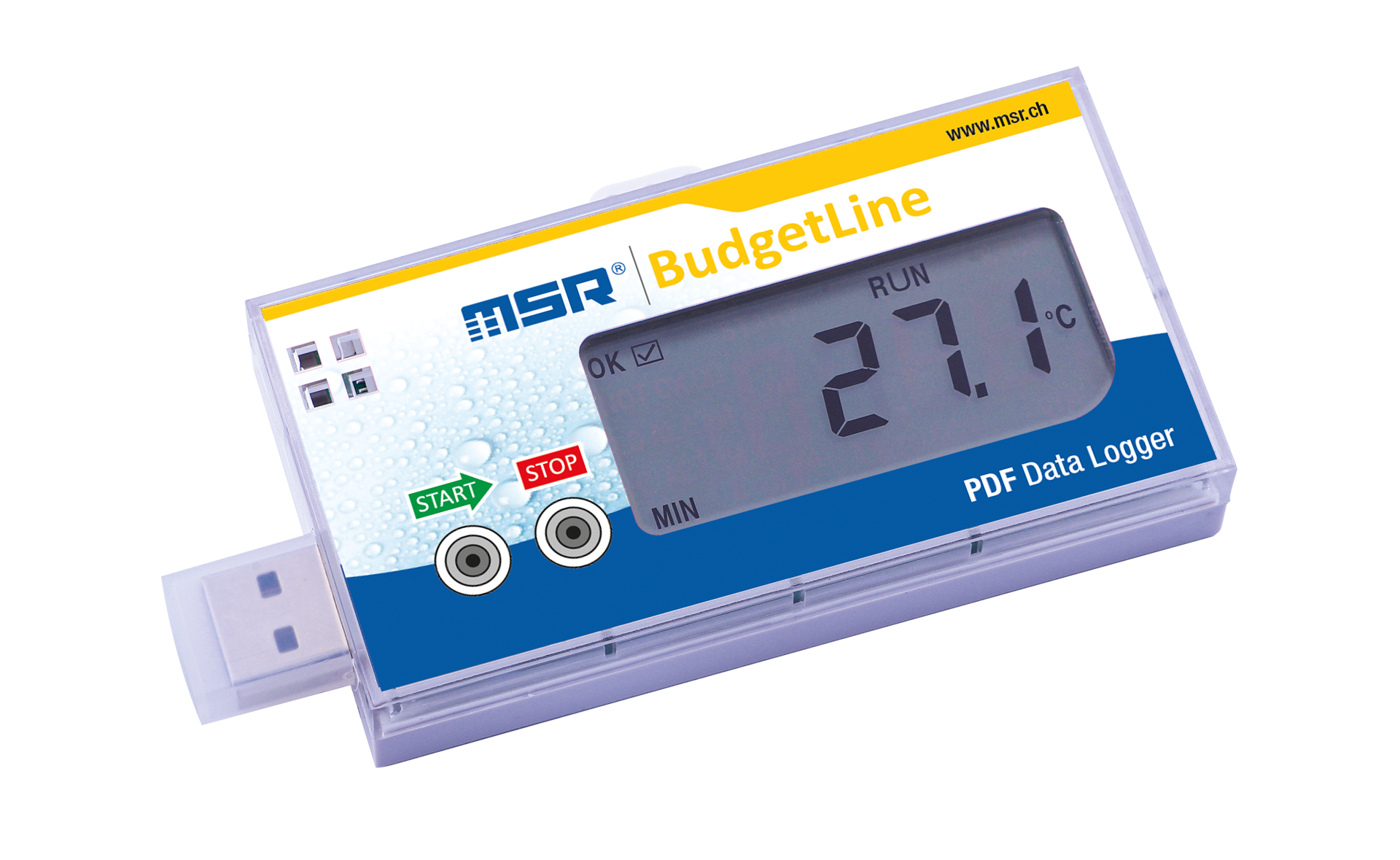

MSR83
|
|
PC, ABS Food Grade, IP54, not encapsulated Size & Weight: 51 x 15 x 101 mm (W x H X L), approx. 52 g |
CHF 56.00 buy online contact a reseller |

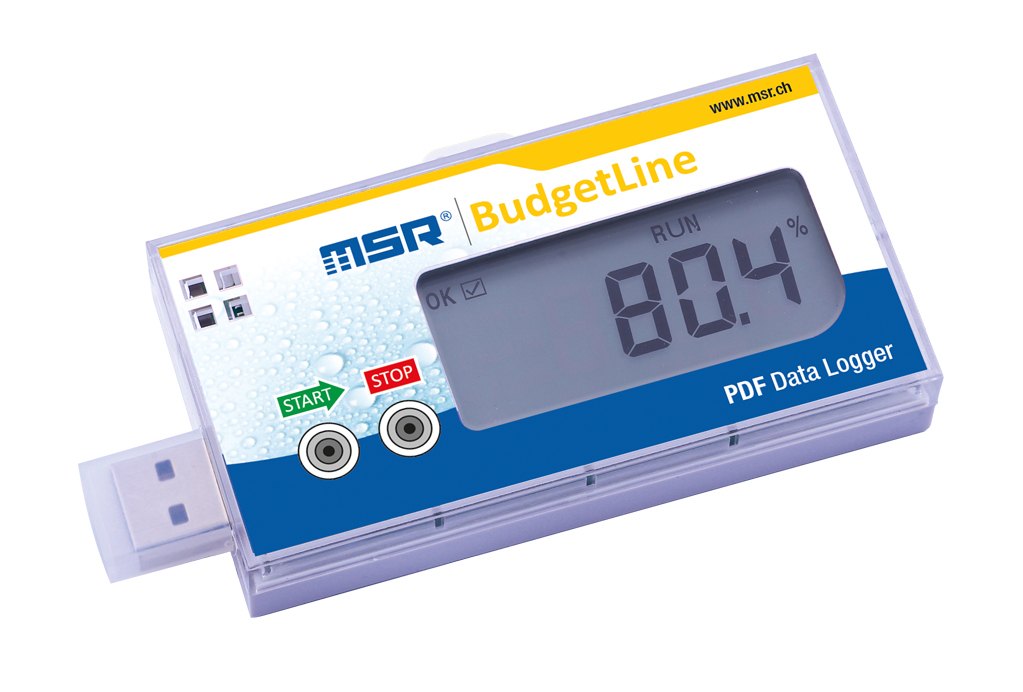

MSR84
|
|
PC, ABS Food Grade, IP54, not encapsulated Size & Weight: 51 x 15 x 101 mm (W x H X L), approx. 52 g |
CHF 108.00 buy online contact a reseller |

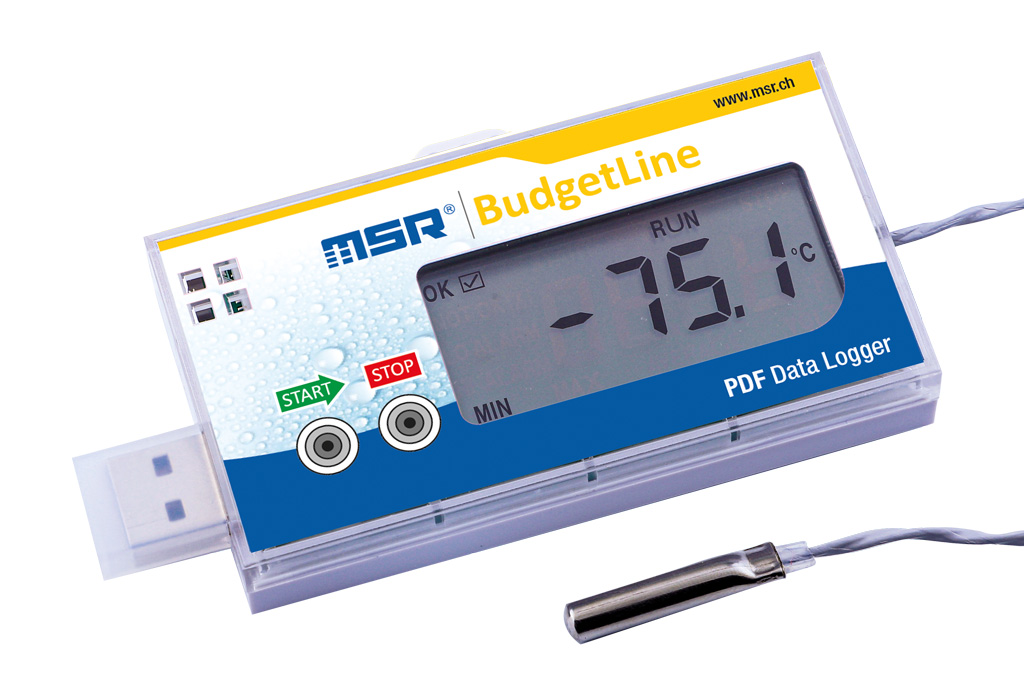

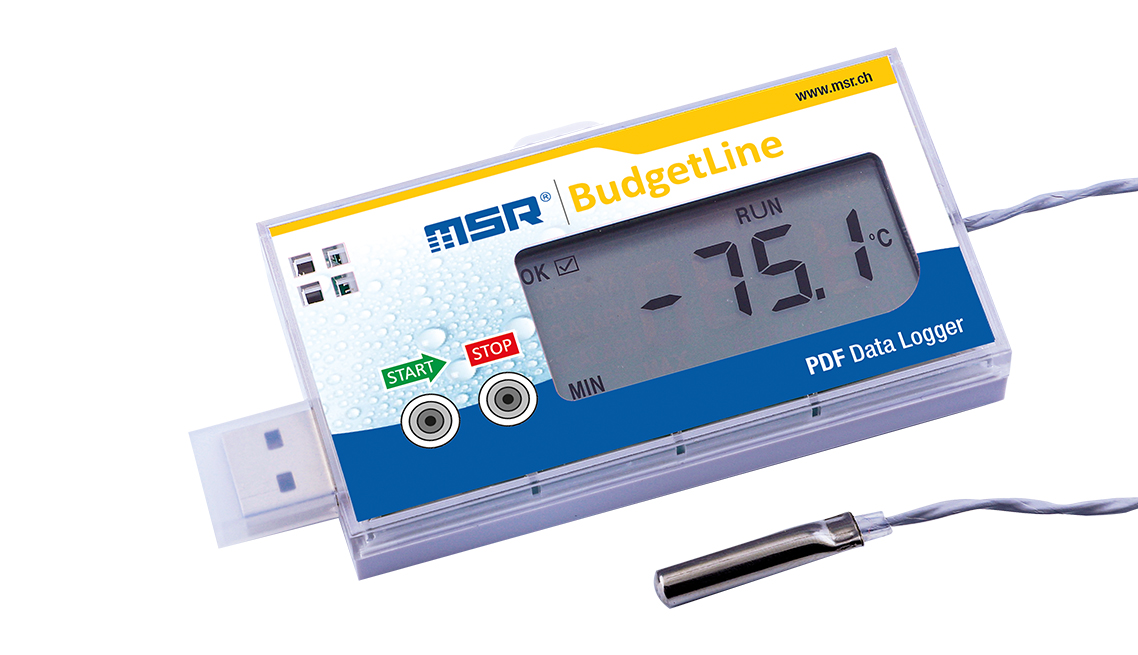

MSR86
|
|
PC, ABS Food Grade, IP54, not encapsulated Size & Weight: 51 x 15 x 101 mm (W x H x L), approx. 56 g, cable approx. 1 m with sensor, sensor Ø6 x 30 |
CHF 122.00 buy online contact a reseller |
Product features data loggers MSR BudgetLine: MSR63, MSR64, MSR83, MSR84, MSR86

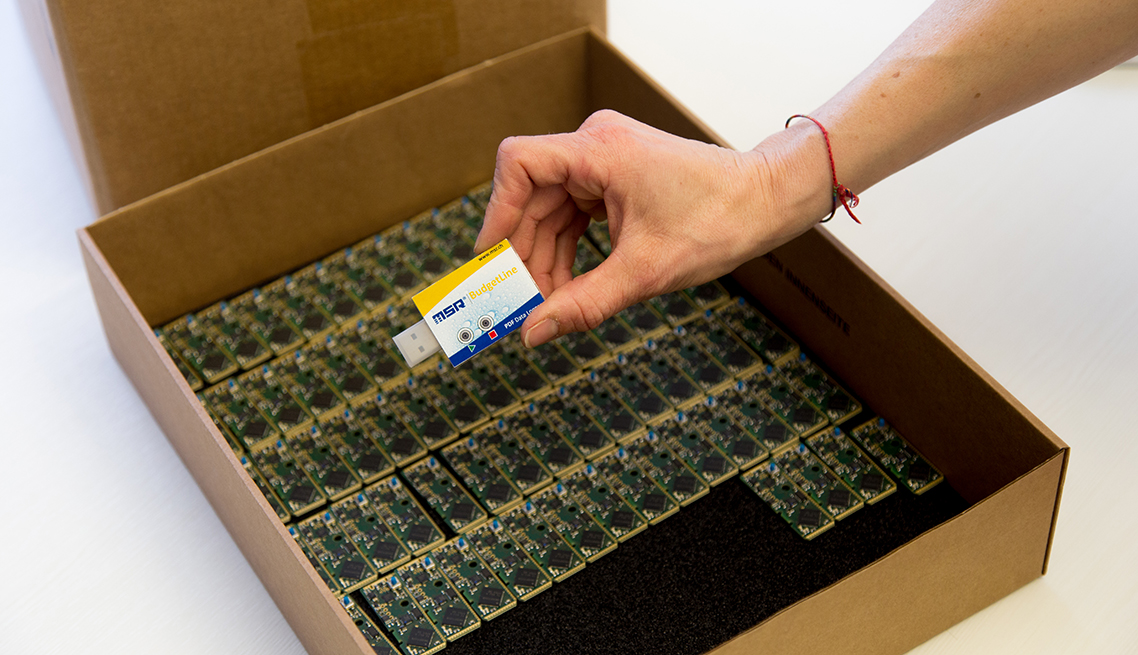

- Reusable PDF data loggers for mass application
- Internal temperature sensor, -30…+70 °C temperature range (MSR63, MSR83, MSR64, MSR84)
- External temperature sensor, -100…+150 °C temperature range (MSR86)
- Internal humidity sensor, 0…98 % rel. humidity range (-30…+70 °C) (MSR64, MSR84)
- 6-point-calibration certificate stored on the logger
- Available with or without display
- Life of the battery approx. 1 year, battery replaceable
- Clear status and alarm LEDs
- Automatic PDF report generation of recorded measured data
- Free MSR BudgetLine software to configure the data logger on the PC
- Fast data transfer by USB interface and straight forward assessment on the PC
Technical information of the sensors
| Sensor | Working range | Accuracy | Measurement / Storage rate |
|---|---|---|---|
| Int. temperature (MSR63, MSR83, MSR64, MSR84) |
-30…+70 °C | ±0.5 °C (-30…+70 °C) | 1 min. up to 10 days |
| Ext. temperature, cable length 1 m (MSR86) | -100…+150 °C | ±0.4 °C (-100…+150 °C) | 1 min. up to 18 hours |
| Int. relative humidity (MSR64, MSR84) |
0…98 % rel. humidity (-30…+70 °C) | ±3 % rel. humidity | 1 min. up to 10 Tage |
General technical data of the MSR BudgetLine Data Loggers
| Housing: | PC, ABS Food Grade, IP54, not encapsulated |
| Size & Weight MSR63: |
36 x 12 x 71 mm (W x H x L), approx. 17 g |
| Size & Weight MSR64, MSR83, MSR84: | 51 x 15 x 101 mm (W x H x L), approx. 52 g |
| Size & Weight MSR86: | 51 x 15 x 101 mm (W x H x L), approx. 56 g, cable approx. 1 m with sensor, sensor Ø6 x 30 |
| Resolution: |  0.1 °C |
| Memory capacity temp. data loggers MSR63, MSR83, MSR86: | 16 000 values |
| Memory capacity temp. & humidity data loggers MSR64 & MSR84: |
32 000 values (16 000 per canal) |
| Alarm: | min./max. value, indication on LED |
| Type of battery: |
3.0 V lithium battery (Panasonic CR2032) |
| Life of battery: |
approx. 1 year, battery replaceable |
| Interface: |
USB 2.0, A-Type |
| PDF-report: | automatic |
| Norms: | DIN12830, 21 CFR Part 11 |
Software
Our software is scanned for viruses with Microsoft Defender.
PC requirements: Windows 10
- For MSR BudgetLine data loggers with delivery date from 1.10.2021, the software is already on the logger, therefore software installation on the PC is no longer necessary.
- MSR BudgetLine pc software (2020-08-14, v2.00.00, MD5: 9fc618fe62d943b55bb29235d7d24028) (only for data loggers with delivery date before 1.10.2021)
Instruction manuals
- Manual MSR BudgetLine data loggers with delivery date from 1.10.2021
- MSR BudgetLine data logger with delivery date before 1.10.2021 – Quick Start Guide (EN)
Datasheet
Certificates
- Air Cargo Approved Tracking Devices MSR: Lufthansa, Austrian, SWISS, Brussels Airlines, Customer Owned Tracker Guideline
- RTCA DO-160G ENVIRONMENTAL CONDITIONS AND TEST PROCEDURES FOR AIRBORNE EQUIPMENT SECTION 21, Cat. H
MSR BudgetLine: Low-cost data loggers for monitoring temperature and humidity
MSR63, MSR64, MSR83, MSR84, MSR86

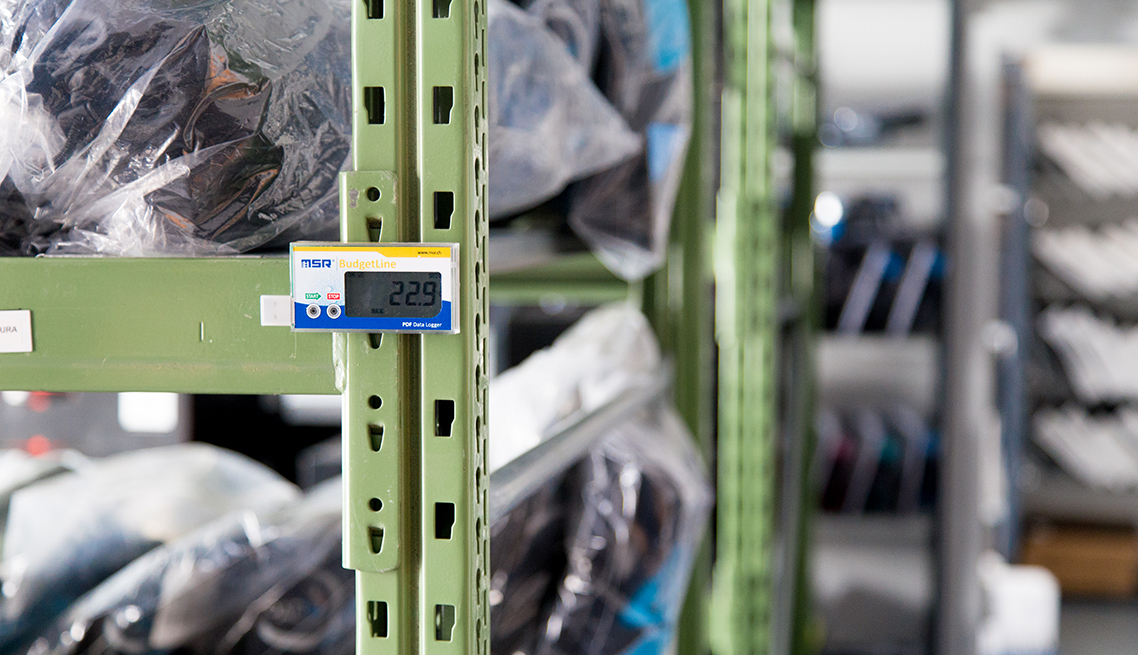

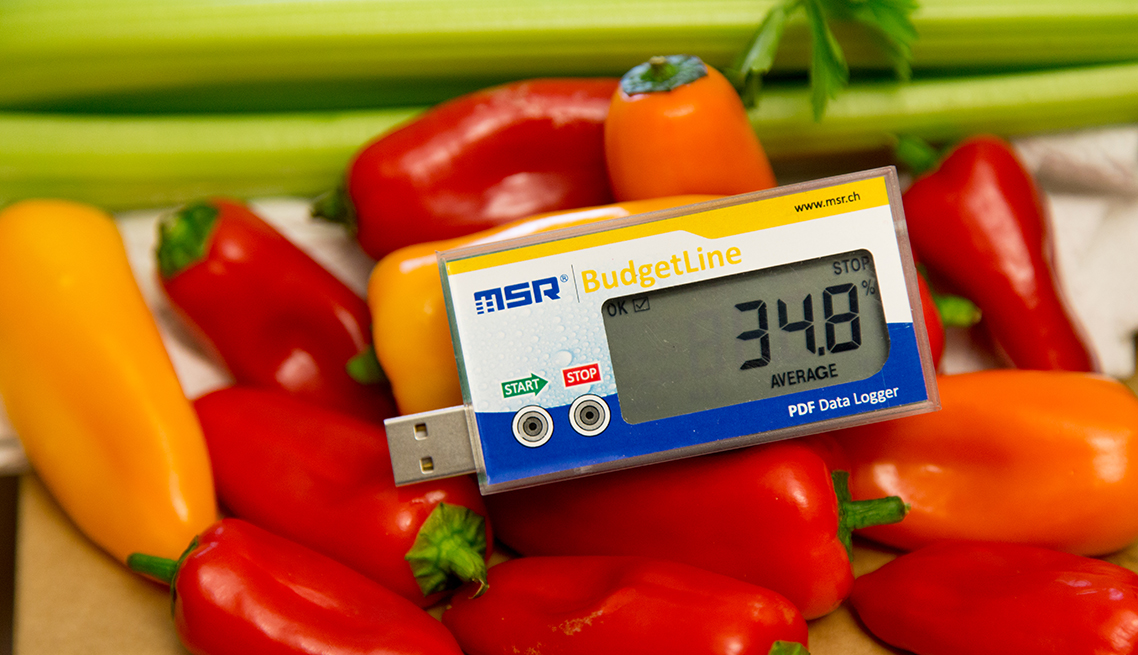

The main application of the MSR BudgetLine loggers is in the monitoring of cold chains during the transport and storage of temperature and humidity-sensitive goods such as electronics, pharmaceuticals, chemicals or food. The very easy-to-use, robust and reusable data loggers are DIN12830 and 21 CFR Part11 compliant and fulfil the EU regulations for the storage and transport of chilled and frozen foods as well as those of the US Food and Drug Administration (FDA).
Where are the MSR BudgetLine data loggers used? Read our application example:
The MSR BudgetLine data loggers are available in the MSR webshop, www.datalogger.shop and from MSR sales partners.
